Artiteq Back Frame Hanging System Rail 300 cm

The Artiteq Back Frame Hanging System Rail is a hanging system designed for mounting aluminium (Dibond), Forex, acrylic, or plexiglass panels. This system allows the panels to be mounted floating (invisibly) on the wall.
Colour: Aluminum brute
Size

Buy this product directly online or find a store near you.

€14,96/ each
Business inquiry
Business inquiry Find a store nearby Contact us
Description

The Artiteq Back Frame Hanging System Rail is a mounting system specially designed for thin and flexible panels made of aluminum (Dibond), Forex, acrylic, or Plexiglas. This system allows panels to be hung floating (blind).

Using the Artiteq Back Frame Hanging Rail makes hanging printed panels simple and safe, and also makes the panels stronger, as the force is distributed across all four sides of the rail. The frames are attached to the back of the wall panel and are therefore not visible from the front.

The Back Frame Hanging System Rail is available with an 8 or 15 mm profile in the following finishes: clear aluminum and silver anodized.

This product only includes the rail with a total length of 300 cm. To use it, the rail must be mitered with a hacksaw. 3M tape must also be applied to the rail. Would you prefer a Back Frame Hanging System Rail that is ready to use? Then check out the kits, where the 3M tape is already attached and the rail is professionally custom-made in various lengths. Finally, to use the Artiteq Back Frame Hanging System Rail, the Back Frame Power Corners must be installed. The panel is hung on the Back Frame Corners, no additional accessories are required.

Tip: When attaching the Back Frame Hanging System, Artiteq recommends placing the profiles 100 mm from each side of the printed panel.

Using the Back Frame Hanging System is recommended when the panel to be hung falls within the specified dimensions, see the table.

Material

Thickness

Tape

For surface

Dibond

3 - 6 mm

12 mm only

Up to 4 m2

Forex

3 - 5 mm

12 mm only

Up to 4 m2

Acrylic

3 - 5 mm

12 mm only

Up to 4 m2

Glass

6mm

Double 24 mm

Up to 2 m
Specifications
Height piece (mm) 28
Width piece (mm) 8
Length piece (mm) 3000
Net weight (grams per piece) 508.0
Weight piece (gr) 508.0
Type Back Frame Hanging System
Article number 05.16300

Download

Technical specifications

Geen downloads beschikbaar voor dit product.
Main image
Secondary image

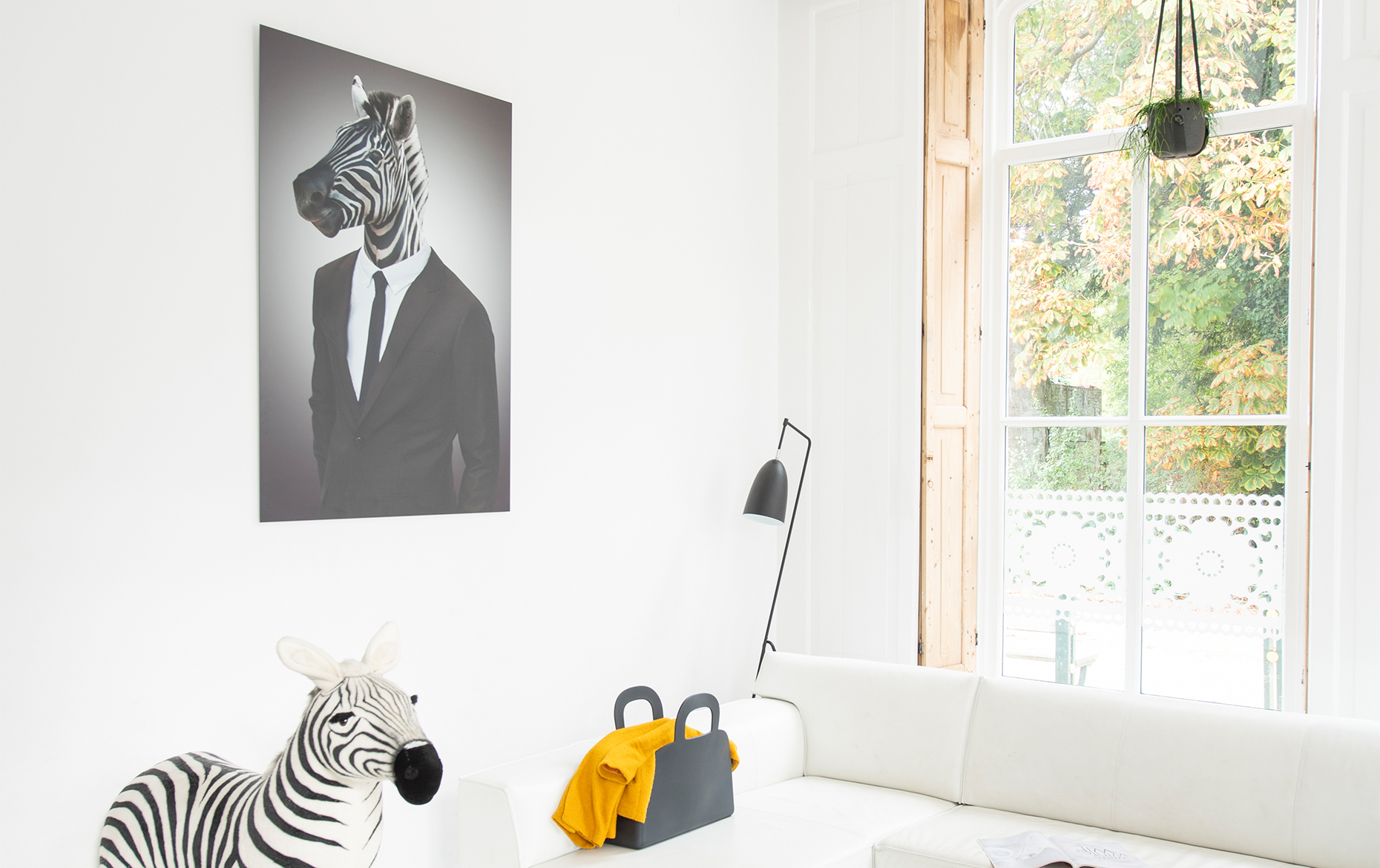

Hanging Dibond panels

Hanging Dibond panels

3 ways to hang printed panels

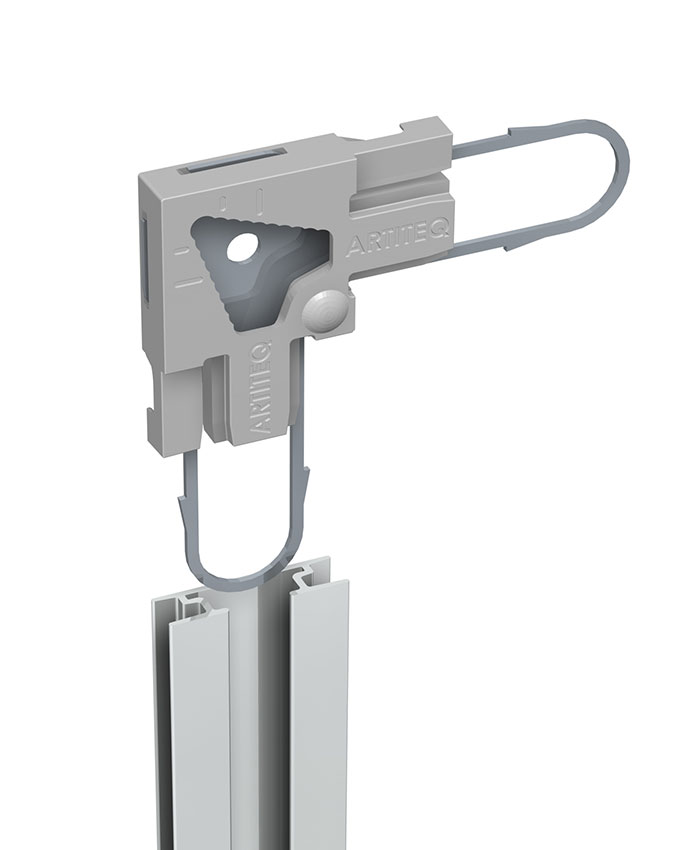

The specially designed Power Corners for the Artiteq Back Frame Hanging System offer 3 options for hanging printed wall panels: fixed, secured or flexible. No additional accessories are required as the printed wall panel is hung with the help of the Power Corners.

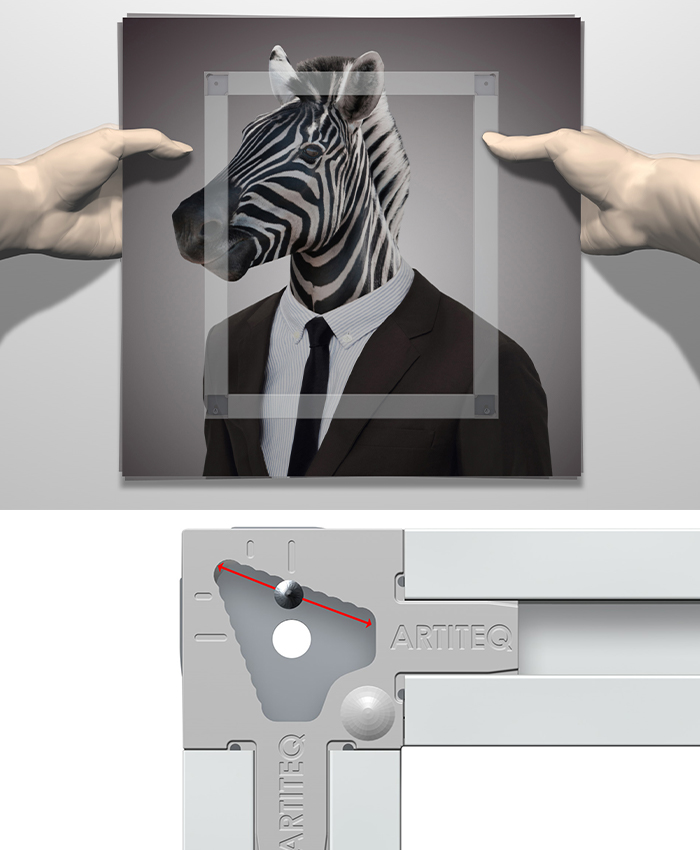

Easy hanging – fixedThe Power Corners offer the possibility to easily hang the wall panel level (up to 6 mm correction possible). The Power Corners are supplied with a handy drilling aid that indicates the exact position of the drill holes. There is also an adjustment option after attaching the system behind the printed panel.

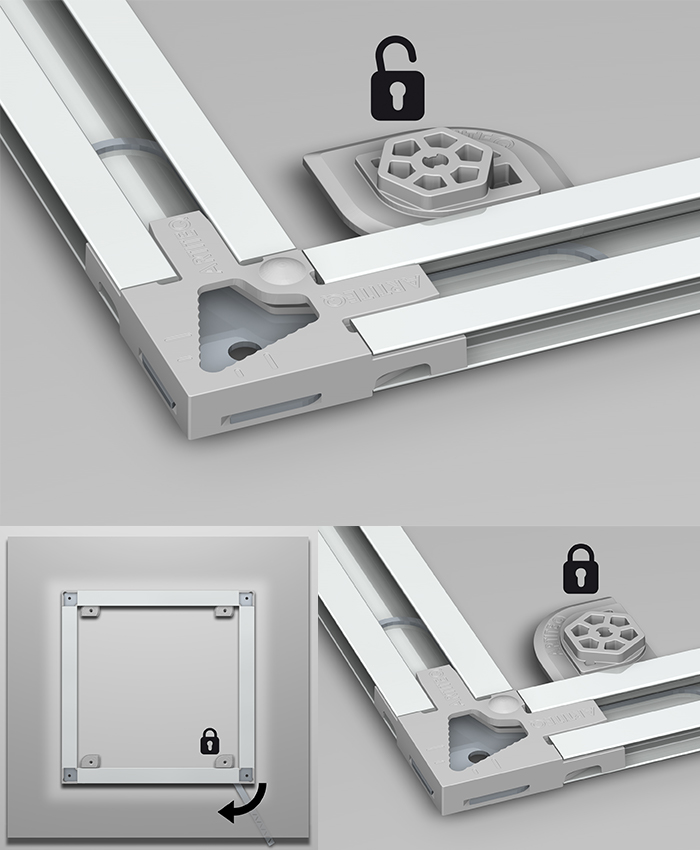

Easy hanging – secured
The panel can be attached to the wall and locked using 4 Security Clips. The frame hangs on the top two Security Clips. By turning the bottom two Clips with the Security Key, the frame locks.

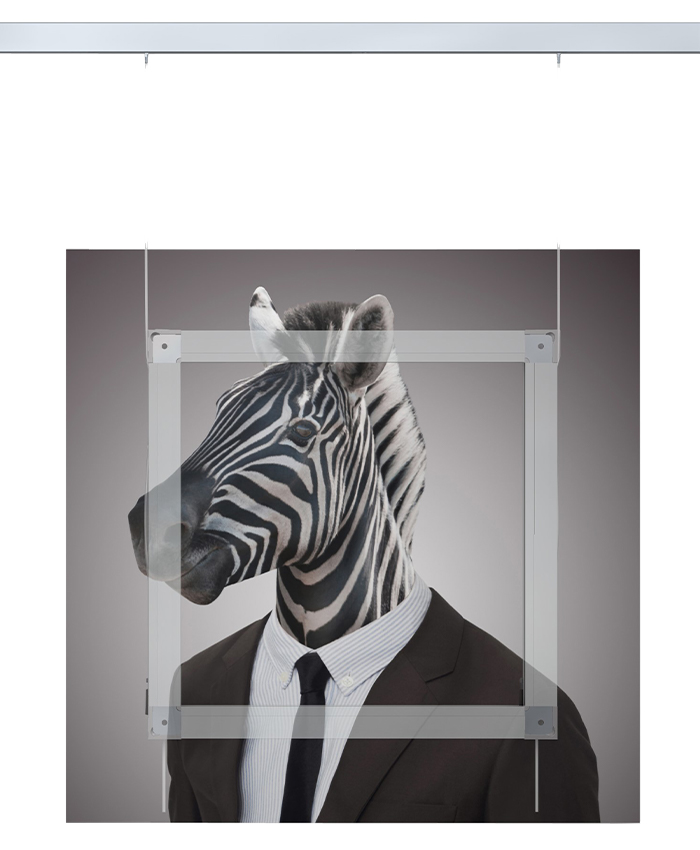

Easy hanging – flexible
The combination of the Artiteq Back Frame Hanging System with a picture hanging system offers
flexibility and ease of use when decorating your walls. The hanging wire is placed in the Power Corner and the hanging hooks in the bottom Power
Corners to prevent tilting as much as possible. To prevent tilting completely, we recommend the use of Flex Bumpers: they create more or
less depth and stabilize the frame against the wall.
