Hang without drilling in any living space in the house

Newly Z100 Powerbar

Fixed wall mounting for wooden panels
Newly Z100 Powerbar (size)

Buy this product directly online or find a store near you.

€13,69/ each
Business inquiry

Description

The Z100 Powerbar provides an adjustable, stable and level solution for hanging large wooden panels. The wooden panel can still be horizontally adjusted on the wall after installation.

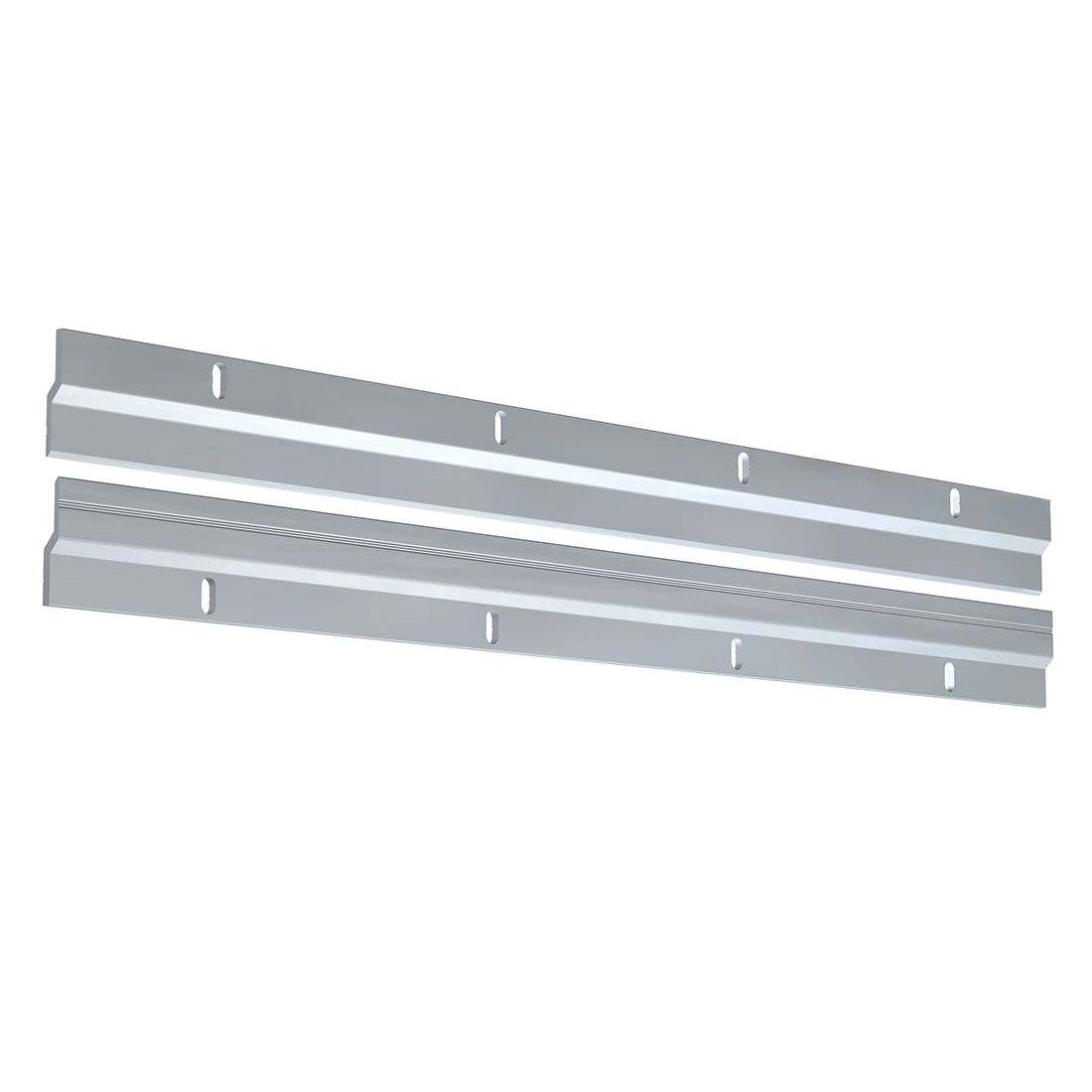

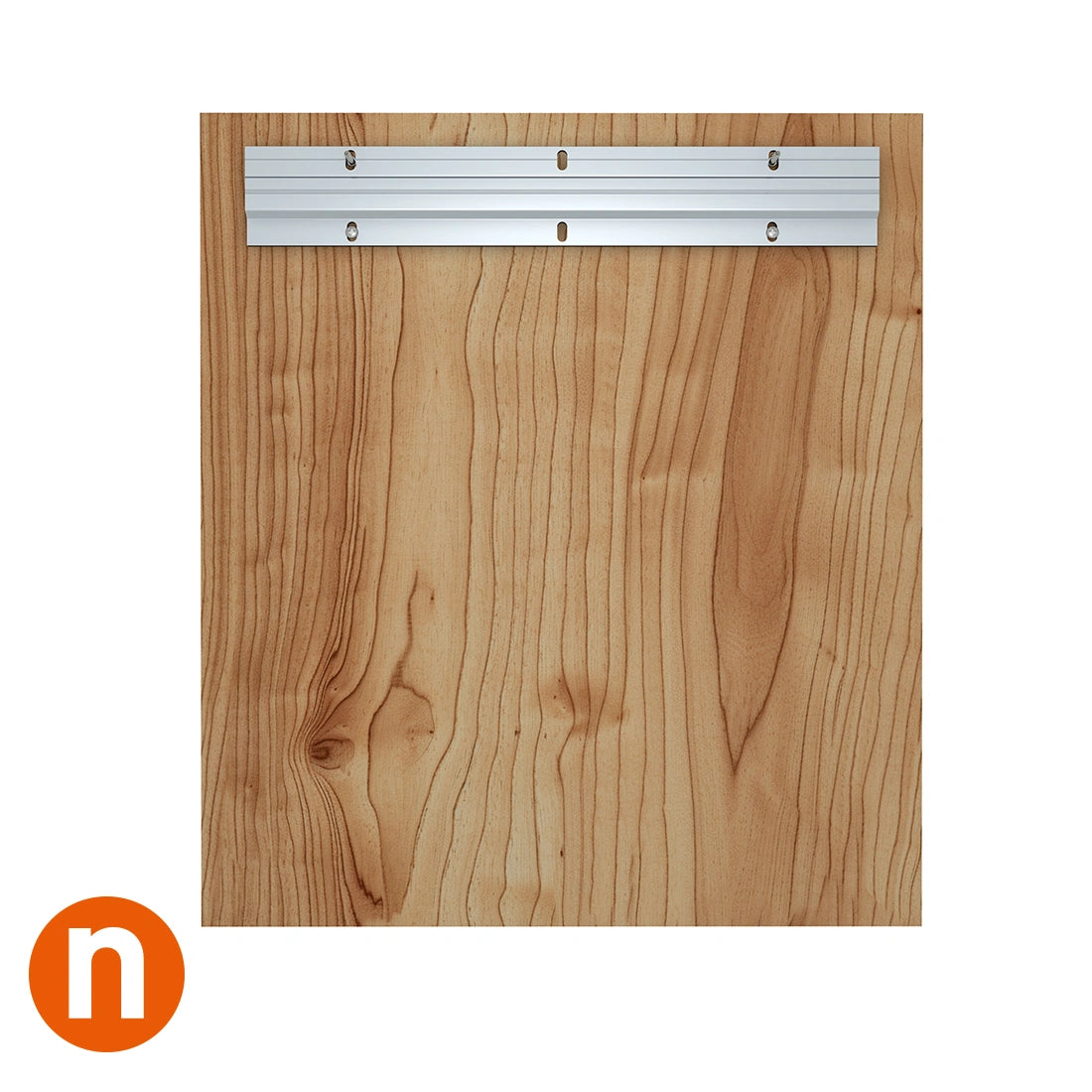

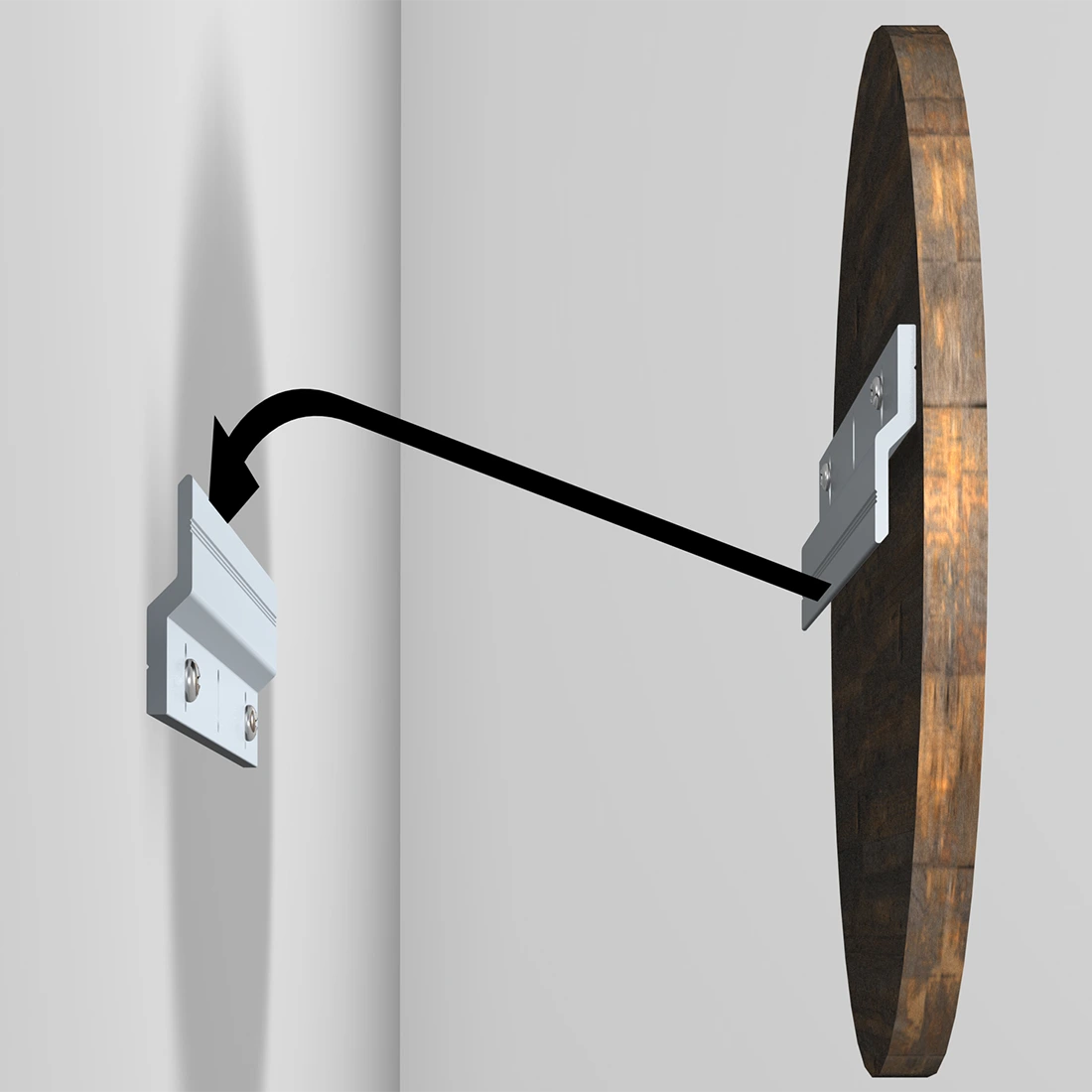

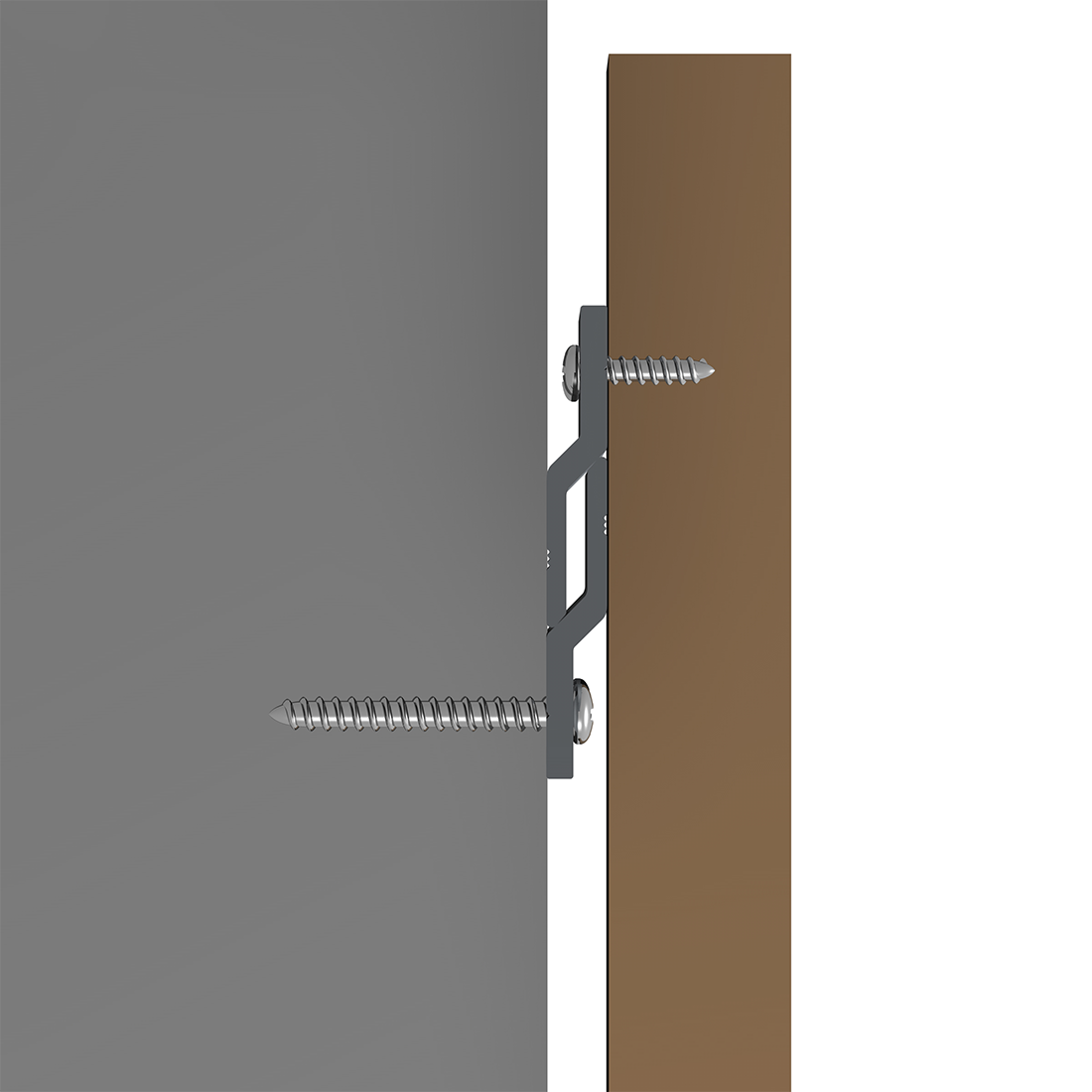

The Z100 Powerbar consists of two parts: one part is mounted to the back of the wooden panel, and the other part is mounted to the wall.

The advantage of the Z100 Powerbar is that it distributes the load over a large length. The load capacity is 3 kg per screw / hole. The holes are positioned every 10 cm along the profile, assuming a suitable wall and sufficiently strong panel material.

The Z100 Powerbar is available in various lengths: 40 cm, 60 cm, 100 cm and 200 cm.
The load capacity of the 40 cm Powerbar is 12 kg, the 60 cm set is 18 kg, and the 100 cm set is 30 kg

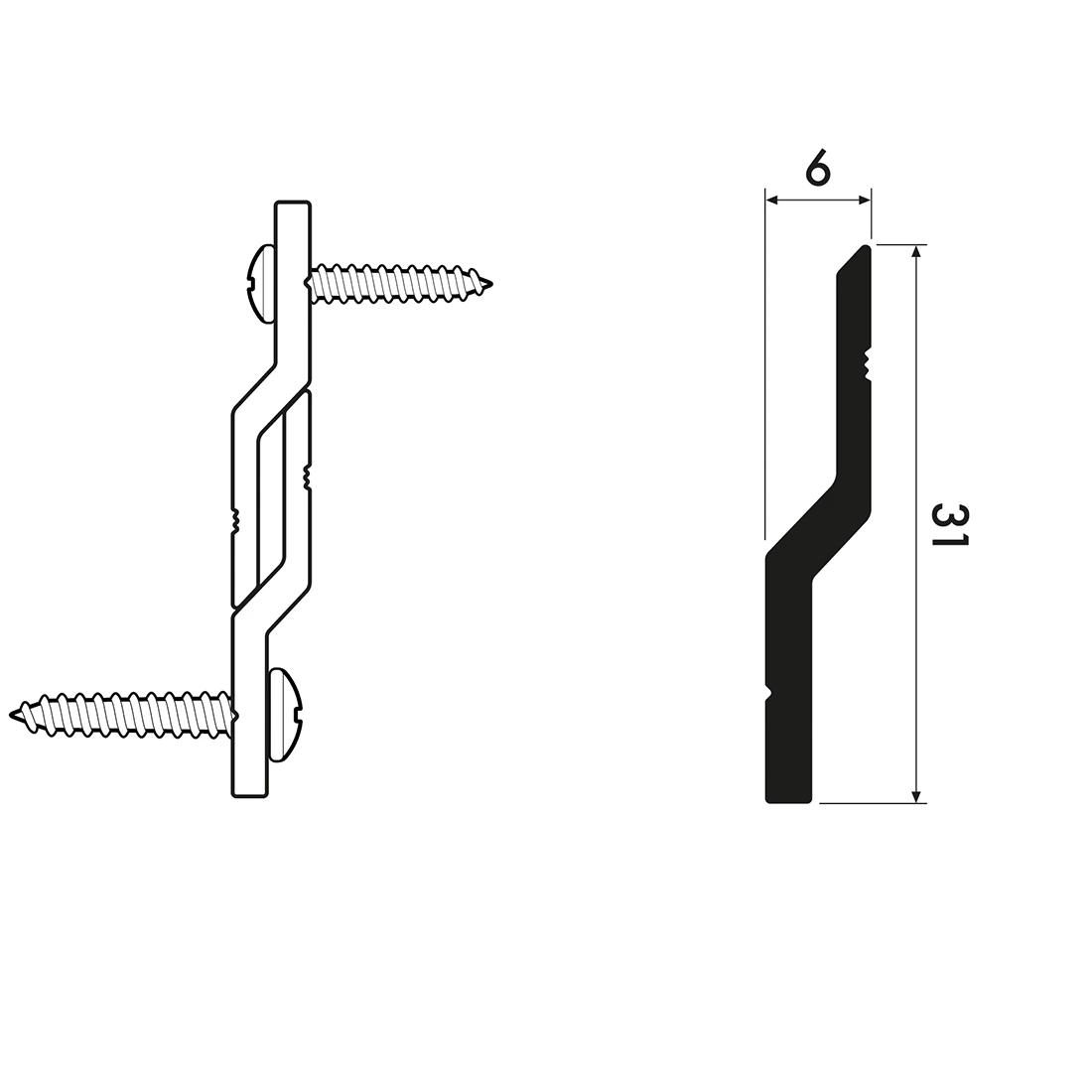

specifications
Load capacity 12 kg
Height piece (mm) 6
Width piece (mm) 30
Length piece (mm) 400
Net weight (grams per piece) 74.0
Weight piece (gr) 74.0
Material Aluminium
Consumer delivery time 2 werkdagen
Article number 7100.040

Download

Product catalog PDF Document
Download

Technical specifications

Geen downloads beschikbaar voor dit product.
